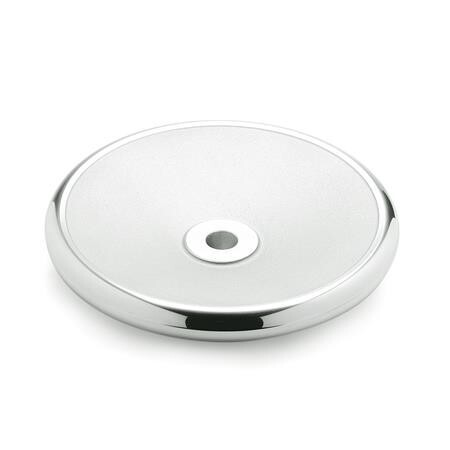

Disc handwheel
DIN 3670-80-B10 Hole without grooveAL - Aluminium
Item-no.: 1201433Supplier number: DIN 3670-80-B10EAN: 4045525228245
Quantity:
1 PiecePackable
Item available in 38 variants:
Price and stock visible after login
Description
Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible. The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.
Attributes
Bohrungskennzeichen
B - ohne Nabennut
Bore labelling
B - without hub groove
Borehole diameter d2
10
Handwheel diameter d1
80
L1
16
L2
29
Material
AL - Aluminium
RoHS
Ja
Weight
0.128 kg
b
14
d3
26
l2 ≈
29
