Disc handwheel
GN 521-125-B14-R ElesaPP - plastic
Item-no.: 1204753Supplier number: 521-125-B14-REAN: 4045525783317
Quantity:
1 PiecePackable
Item available in 41 variants:
Price and stock visible after login
Description
Disk handwheels GN 521 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.

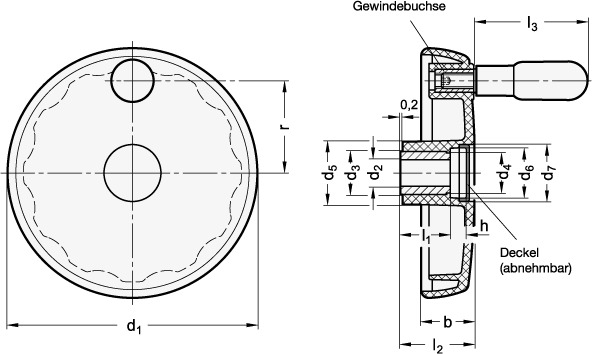

Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d4 (Form R)
14
Form
R - with swivelling handle
Handwheel diameter d1
125
L1
27
L2
39.5
Material
PP - plastic
R
49
RoHS
Ja
Weight
0.200 kg
b
28
d3
26
d4
24
d5
35
d6
28
d7
31
h
11
l3
60
Ø Cylinder handle
18
Ø Zylindergriff
18
