Disc handwheel
GN 521-150-K16-R ElesaPP - plastic
Item-no.: 1204761Supplier number: 521-150-K16-REAN: 4045525783362
Quantity:
1 PiecePackable
Item available in 41 variants:
Price and stock visible after login
Description
Disk handwheels GN 521 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.

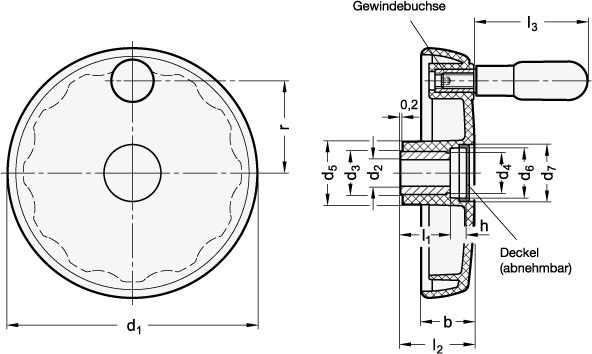

Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d4 (Form R)
16
Form
R - with swivelling handle
Handwheel diameter d1
150
L1
30
L2
44
Material
PP - plastic
R
58
RoHS
Ja
Weight
0.300 kg
b
32
d3
26
d4
24
d5
38
d6
30
d7
34
h
10
l3
65
Ø Cylinder handle
22
Ø Zylindergriff
22
