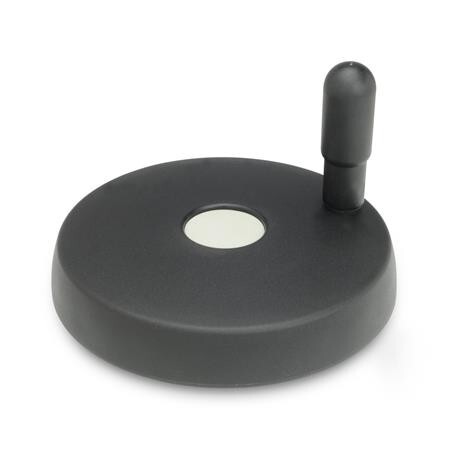

Disc handwheel
GN 521-175-K20-R ElesaPP - Kunststoff
Item-no.: 1204765Supplier number: 521-175-K20-Rcustoms tariff number: 84879090EAN: 4045525783409
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 521 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d4 (Form R)
20
Form
R - with swivelling handle
Handwheel diameter d1
175
L1
28
L2
49
Material
PP - plastic
R
70
RoHS
Ja
Weight
0.420 kg
b
36
d3
35
d4
33
d5
44
d6
35
d7
39
h
16
l3
80
Ø Cylinder handle
24
Ø Zylindergriff
24
