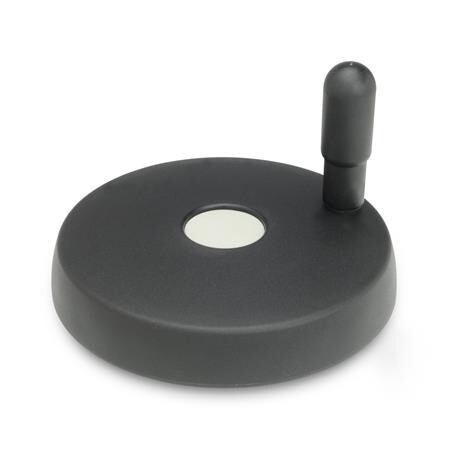

Disc handwheel
GN 521-300-B20-R ElesaPP - Kunststoff
Item-no.: 1204774Supplier number: 521-300-B20-Rcustoms tariff number: 84879090EAN: 4045525783485
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 521 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d4 (Form R)
20
Form
R - with swivelling handle
Handwheel diameter d1
300
L1
44
L2
66
Material
PP - plastic
R
124
RoHS
Ja
Weight
1.320 kg
b
46
d3
40
d4
36.5
d5
72
d6
66
d7
68.5
h
20
l3
90
Ø Cylinder handle
25
Ø Zylindergriff
25
