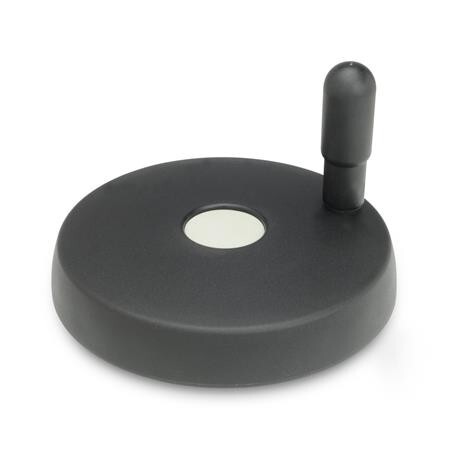

Disc handwheel
GN 521-80-B8-R ElesaPP - plastic
Item-no.: 1204776Supplier number: 521-80-B8-REAN: 4045525783232
Quantity:
1 PiecePackable
Item available in 41 variants:
Price and stock visible after login
Description
Disk handwheels GN 521 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.
Attributes
Bohrungskennzeichen
B - ohne Nabennut
Bore labelling
B - without hub groove
Borehole diameter d4 (Form R)
8
Form
R - with swivelling handle
Handwheel diameter d1
80
L1
17
L2
29
Material
PP - plastic
R
30.5
RoHS
Ja
Weight
0.110 kg
b
20
d3
18
d4
16
d5
25
d6
19
d7
21
h
8
l3
45
Ø Zylindergriff
16
ØZylindergriff
16
