Disc handwheel
GN 923-50-B8-R-SRAD - Aluminium-Druckguss
Item-no.: 1658529Supplier number: 923-50-B8-R-SRcustoms tariff number: 84879090EAN: 4045525887503
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 923 are distinguished by modern design. The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
Attributes

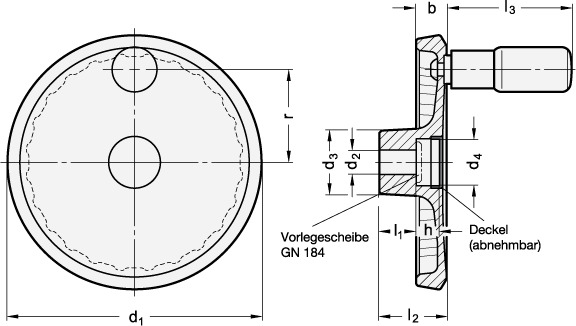

Bore identification
B - without hub groove
Borehole diameter d2
8
Colour
SR - silver, RAL 9006, textured matt
Form
R - with swivelling handle
Handwheel diameter d1
50
L1
16
L2
26
Material
AD - Die-cast aluminium
R
16
Recommended disc
184-12
Recommended disc
184-12
RoHS
Ja
Weight
0.076 kg
Zylinderknopf GN 599.5
13
b
13
d1
50...63 - Disc handwheel
d3
20
d4
13
h
7
l2 ≈
26
l3
20
l3 ≈
20
