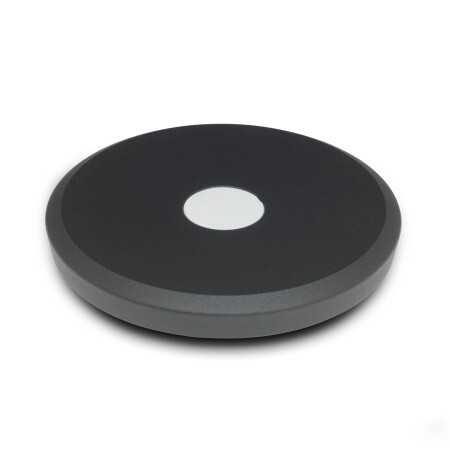

Disc handwheel
GN 923-50-K6-A-SWAD - Aluminium-Druckguss
Item-no.: 1658532Supplier number: 923-50-K6-A-SWcustoms tariff number: 84879090EAN: 4045525887473
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 923 are distinguished by modern design. The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
Attributes

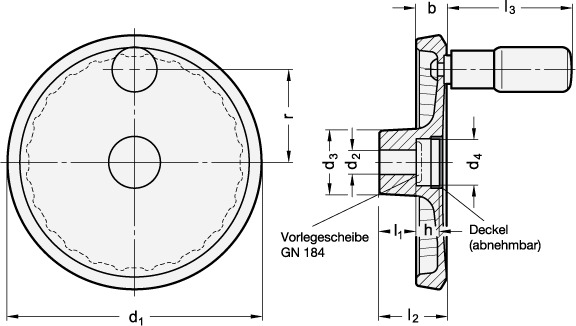

Bore identification
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
6
Colour
SW - black, RAL 9005, textured matt
Form
A - without handle
Handwheel diameter d1
50
L1
16
L2
26
Material
AD - Die-cast aluminium
R
16
Recommended disc
184-12
Recommended disc
184-12
RoHS
Ja
Weight
0.066 kg
Zylinderknopf GN 599.5
13
b
13
d3
20
d4
13
h
7
l2 ≈
26
l3
20
l3 ≈
20
