Disc handwheel for position indicator
GN 323.8-160-B14-R Bore with groove, handle rotatableAK - Aluminium gravity die casting
Item-no.: 1196642Supplier number: 323.8-160-B14-REAN: 4045525483828
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
Handwheels GN 323.8 have a recessed hub to accept position indicators GN 000.8 / GN 000.3. The hub dimensions (for fitting) correspond to those of disc handwheels GN 323 and/or handwheels to DIN 950.

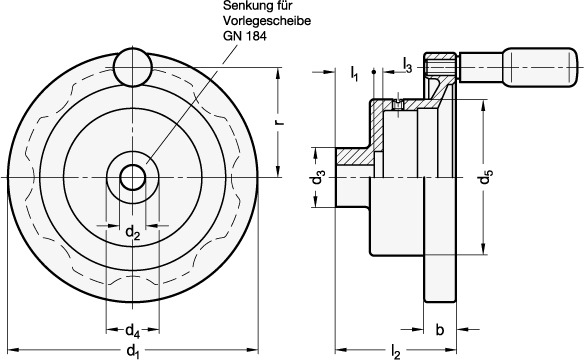

Attributes
Bore labelling
B - without hub groove
Borehole diameter d2
14
Form
R - with swivelling handle
L1
20
Material
AK - Aluminium gravity die casting
Outer diameter d1
160
RoHS
Ja
Weight
0.755 kg
b
18
d3
36
d4
29
d5
78
für Stellungsanzeiger GN 000.8Größe
60
l2 ≈
67
l3
4
ØZylindergriff GN 798
24
