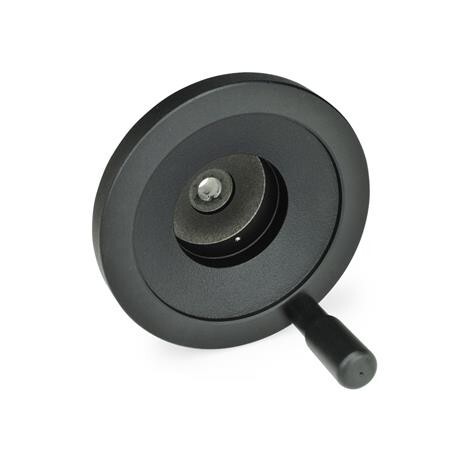

Disc handwheel for position indicator
GN 323.8-250-K22-R Bore with groove, handle rotatableAL - Aluminium
AL - Aluminium
Item-no.: 1196657Supplier number: 323.8-250-K22-Rcustoms tariff number: 84879090EAN: 4045525483873
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Handwheels GN 323.8 have a recessed hub to accept position indicators GN 000.8 / GN 000.3. The hub dimensions (for fitting) correspond to those of disc handwheels GN 323 and/or handwheels to DIN 950.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9

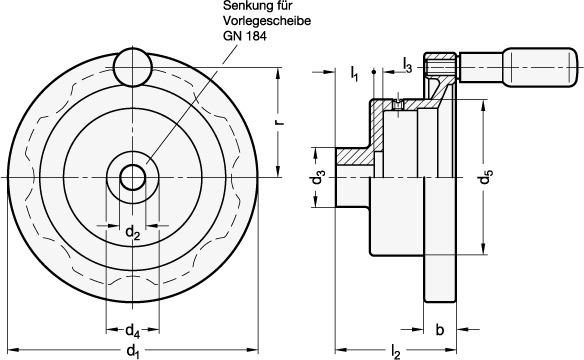

Borehole diameter d2
22
Form
R - with swivelling handle
L1
28
Material
AL - Aluminium
Outer diameter d1
250
RoHS
Ja
Weight
1.625 kg
b
23
d3
48
d4
37
d5
80
für Stellungsanzeiger GN 000.8Größe
60
l2 ≈
81.5
l2≈
81.5
l3
4.5
ØZylindergriff GN 798
25
