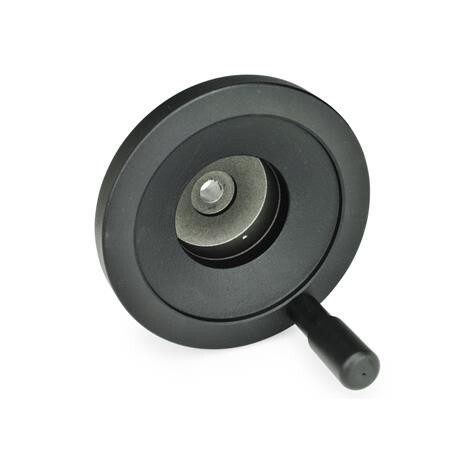

Disc handwheel, complete
GN 323.9-125-B12-R for GN 000.9AL - Aluminium
AL - Aluminium
Item-no.: 1196668Supplier number: 323.9-125-B12-Rcustoms tariff number: 84879090EAN: 4045525889460
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323.9 have a recessed hub to accept position indicators GN 000.9 / GN 000.13. The pallet pin is screwed in and held in position with the hexagon locknut.The length of the pallet pin l5 can be adjusted as required.
Attributes
A
28.5
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
12
Form
R - with swivelling handle
L1
22.5
L2
65.5
Material
AL - Aluminium
Outer diameter d1
125
RoHS
Ja
Weight
0.546 kg
b
15
d3
32
d4
22.5
d5
6
d6
76
für Stellungsanzeiger GN 000.9Größe
60
l2 ≈
65.5
l3
4
l4
12
l5
13.1
ØZylindergriff GN 798
22
