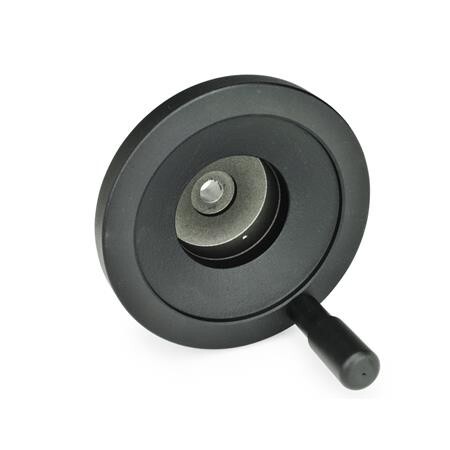

Disc handwheel, complete
GN 323.9-160-B14-R for GN 000.9AL - Aluminium
AL - Aluminium
Item-no.: 1196672Supplier number: 323.9-160-B14-Rcustoms tariff number: 84879090EAN: 4045525889491
Quantity:
1 PiecePackable
Price and stock visible after login
Description

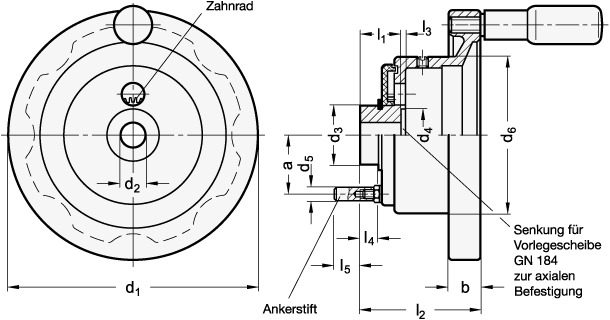

Disk handwheels GN 323.9 have a recessed hub to accept position indicators GN 000.9 / GN 000.13. The pallet pin is screwed in and held in position with the hexagon locknut.The length of the pallet pin l5 can be adjusted as required.
Attributes
A
28.5
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
14
Form
R - with swivelling handle
L1
23.5
L2
71.5
Material
AL - Aluminium
Outer diameter d1
160
RoHS
Ja
Weight
0.772 kg
b
18
d3
32
d4
25.5
d5
6
d6
78
für Stellungsanzeiger GN 000.9Größe
60
l2 ≈
71.5
l3
4
l4
13
l5
12.1
ØZylindergriff GN 798
24
