Disc handwheel with bore
GN 321-100-B12-R without groove, with swivelling handleAL - Aluminium
Item-no.: 1075862Supplier number: 321-100-B12-Rcustoms tariff number: 84879090EAN: 4045525483552
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.

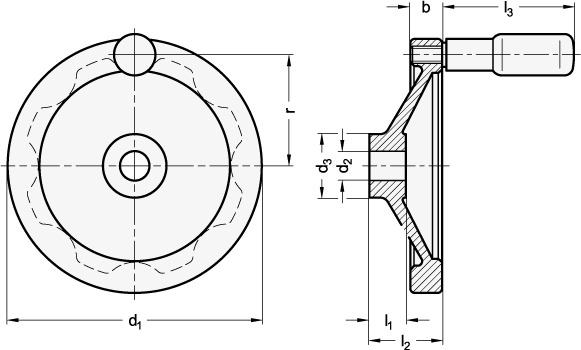

Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
12
Form
R - with swivelling handle
Handwheel diameter d1
100
L1
17
L2
30
Material
AL - Aluminium
R
42.5
RoHS
Ja
Weight
0.220 kg
Zylindergriff GN 798
18
b
14
d3
28
l2 ≈
30
l3
58.5
l3 ≈
58.5
