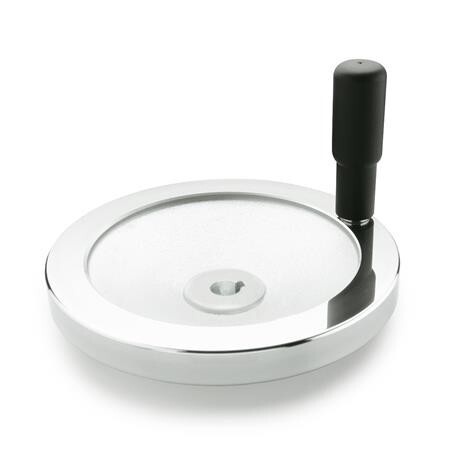

Disc handwheel with bore
GN 321-125-K12-R with groove, with swivelling handleAL - Aluminium
AL - Aluminium
Item-no.: 1196419Supplier number: 321-125-K12-Rcustoms tariff number: 84879090EAN: 4045525483606
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.

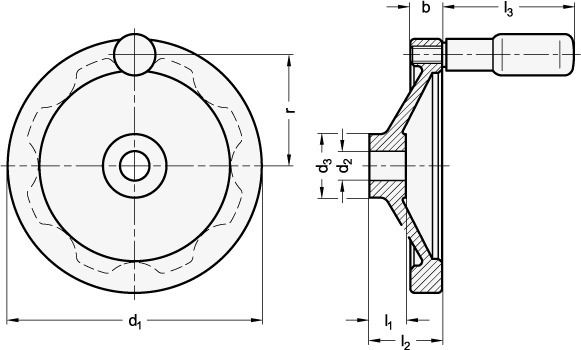

Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
12
Form
R - with swivelling handle
Handwheel diameter d1
125
L1
18
L2
33
Material
AL - Aluminium
R
54
RoHS
Ja
Weight
0.380 kg
Zylindergriff GN 798
22
b
15
d3
31
l2 ≈
33
l3
61.5
l3 ≈
61.5
