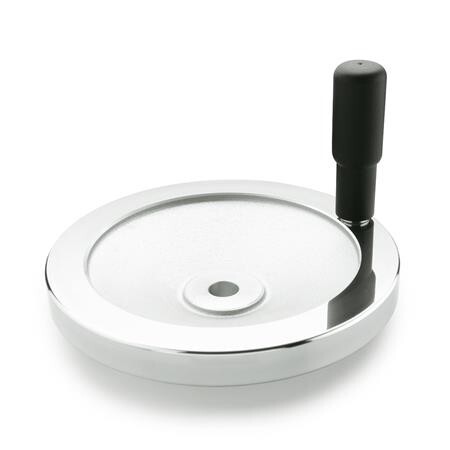

Disc handwheel with bore
GN 321-140-B16-R without groove, with swivelling handleAL - Aluminium
Item-no.: 1196424Supplier number: 321-140-B16-Rcustoms tariff number: 84879090EAN: 4045525483637
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
16
Form
R - with swivelling handle
Handwheel diameter d1
140
L1
19
L2
36
Material
AL - Aluminium
R
61
RoHS
Ja
Weight
0.450 kg
Zylindergriff GN 798
24
b
16.5
d3
36
l2 ≈
36
l3
76.5
l3 ≈
76.5
