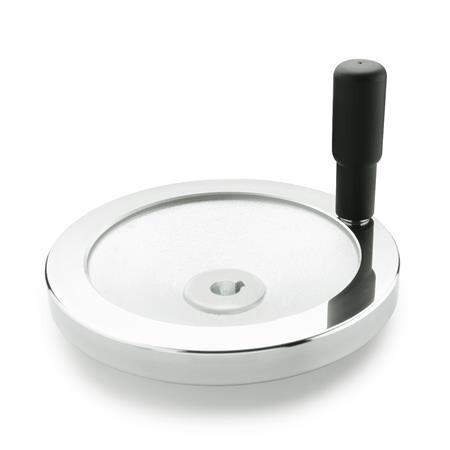

Disc handwheel with bore
GN 321-200-K20-R with groove, with swivelling handleAL - Aluminium
Item-no.: 1196444Supplier number: 321-200-K20-Rcustoms tariff number: 84879090EAN: 4045525483736
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
20
Form
R - with swivelling handle
Handwheel diameter d1
200
L1
24
L2
45
Material
AL - Aluminium
R
89
RoHS
Ja
Weight
0.950 kg
Zylindergriff GN 798
25
b
20.5
d3
45
l2 ≈
45
l3
86.5
l3 ≈
86.5
