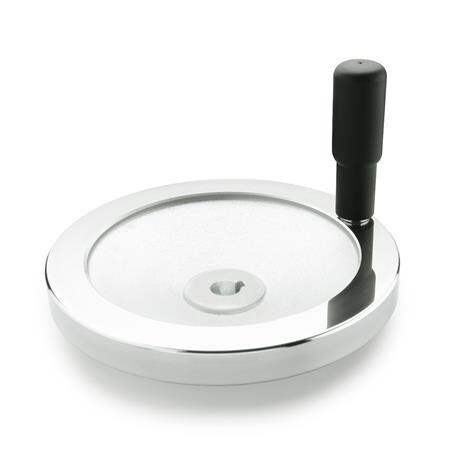

Disc handwheel with bore
GN 321-250-K26-R with groove, with swivelling handleAL - Aluminium
Item-no.: 1196452Supplier number: 321-250-K26-Rcustoms tariff number: 84879090EAN: 4045525483767
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
26
Form
R - with swivelling handle
Handwheel diameter d1
250
L1
28
L2
51
Material
AL - Aluminium
R
113
RoHS
Ja
Weight
1.604 kg
Zylindergriff GN 798
25
b
23
d3
48
l2 ≈
51
l3
86.5
l3 ≈
86.5
