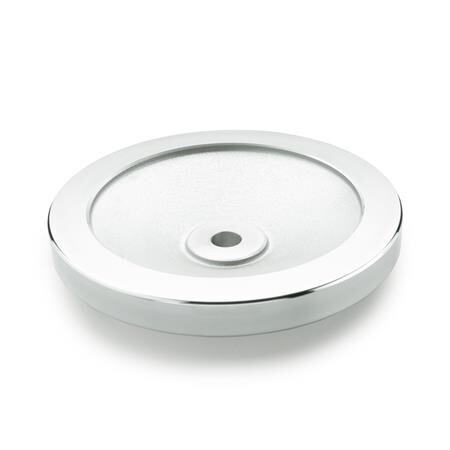

Disc handwheel with bore
GN 321-80-B12-A without groove, without rotating handleAL - Aluminium
Item-no.: 1196454Supplier number: 321-80-B12-Acustoms tariff number: 84879090EAN: 4045525178274
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.
Attributes

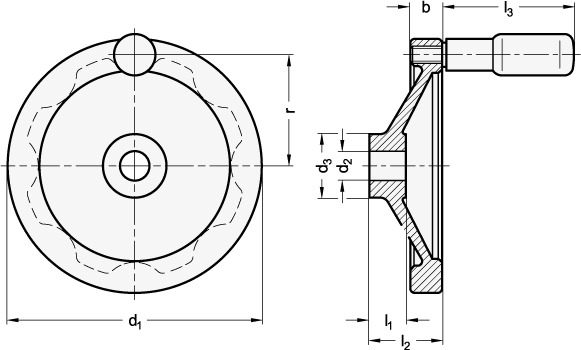

Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
12
Form
A - without handle
Handwheel diameter d1
80
L1
16
L2
26
Material
AL - Aluminium
R
33.5
RoHS
Ja
Weight
0.131 kg
Zylindergriff GN 798
16
b
13
d3
26
l2 ≈
26
l3
44
l3 ≈
44
