Disc handwheel with bore
GN 321-80-K10-A with groove, without rotating handleAL - Aluminium
Item-no.: 1196456Supplier number: 321-80-K10-Acustoms tariff number: 84879090EAN: 4045525178359
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 321 have recessed grips at their back.

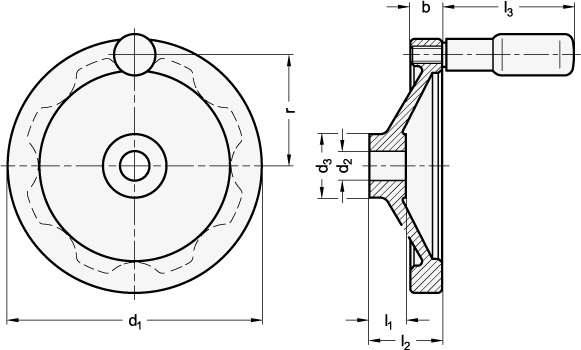

Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
10
Form
A - without handle
Handwheel diameter d1
80
L1
16
L2
26
Material
AL - Aluminium
R
33.5
RoHS
Ja
Weight
0.132 kg
Zylindergriff GN 798
16
b
13
d3
26
l2 ≈
26
l3
44
l3 ≈
44
