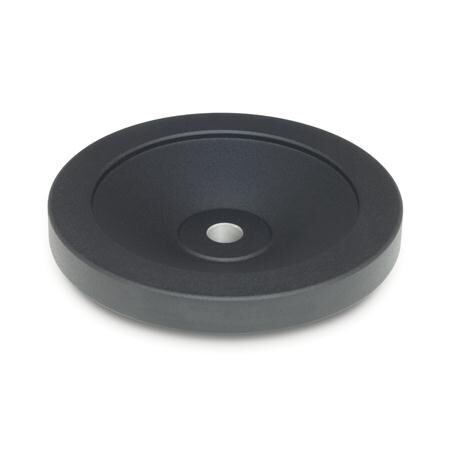

Disc handwheel with bore
GN 323-100-B12-A without groove, black, without handleAL - Aluminium
Item-no.: 1196681Supplier number: 323-100-B12-Acustoms tariff number: 84879090EAN: 4045525184114
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323 have recessed grips at their back.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove

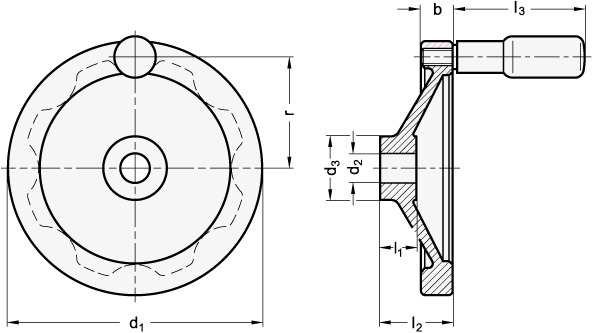

Borehole diameter d2
12
Form
A - without handle
Handwheel diameter d1
100
L1
17
L2
30
Material
AL - Aluminium
R
42.5
RoHS
Ja
Weight
0.214 kg
Zylindergriff GN 798
18
b
14
d3
28
l2 ≈
30
l3
58.5
l3 ≈
58.5
