Disc handwheel with bore
GN 323-125-B12-R without groove, black, twist gripAL - Aluminium
Item-no.: 1196688Supplier number: 323-125-B12-Rcustoms tariff number: 84879090EAN: 4045525482951
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323 have recessed grips at their back.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove

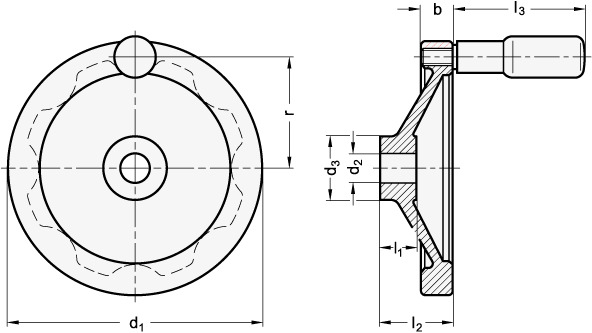

Borehole diameter d2
12
Form
R - with swivelling handle
Handwheel diameter d1
125
L1
18
L2
33
Material
AL - Aluminium
R
54
RoHS
Ja
Weight
0.380 kg
Zylindergriff GN 798
22
b
15
d3
31
l2 ≈
33
l3
61.5
l3 ≈
61.5
