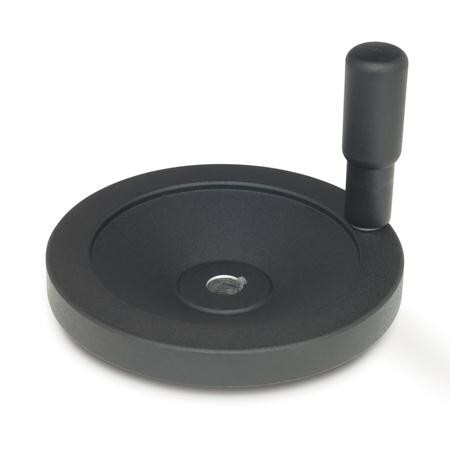

Disc handwheel with bore
GN 323-125-K12-R with groove, black, twist gripAL - Aluminium
Item-no.: 1196691Supplier number: 323-125-K12-Rcustoms tariff number: 84879090EAN: 4045525482975
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323 have recessed grips at their back.

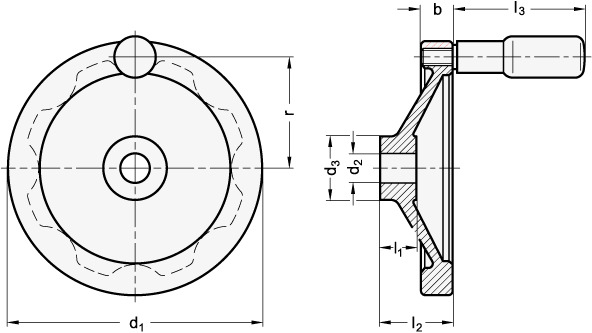

Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
12
Form
R - with swivelling handle
Handwheel diameter d1
125
L1
18
L2
33
Material
AL - Aluminium
R
54
RoHS
Ja
Weight
0.360 kg
Zylindergriff GN 798
22
b
15
d3
31
l2 ≈
33
l3
61.5
l3 ≈
61.5
