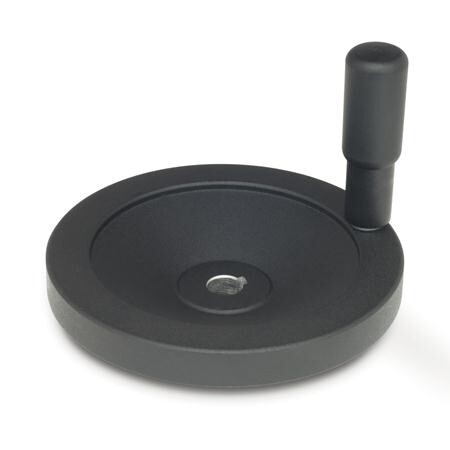

Disc handwheel with bore
GN 323-140-K14-R with groove, black, twist gripAL - Aluminium
AL - Aluminium
Item-no.: 1196699Supplier number: 323-140-K14-Rcustoms tariff number: 84879090EAN: 4045525483019
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323 have recessed grips at their back.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
14
Form
R - with swivelling handle
Handwheel diameter d1
140
L1
19
L2
36
Material
AL - Aluminium
R
61
RoHS
Ja
Weight
0.438 kg
Zylindergriff GN 798
24
b
16.5
d3
36
l2 ≈
36
l3
76.5
l3 ≈
76.5
