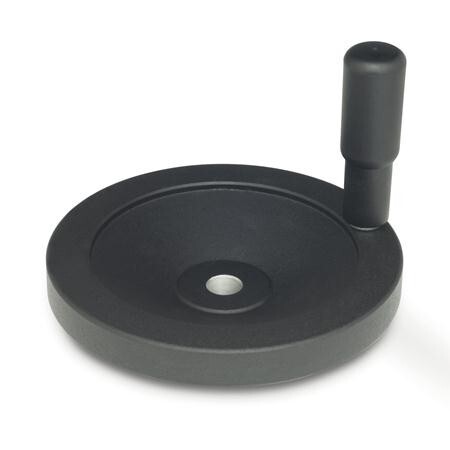

Disc handwheel with bore
GN 323-160-B14-R without groove, black, twist gripAL - Aluminium
Item-no.: 1196703Supplier number: 323-160-B14-Rcustoms tariff number: 84879090EAN: 4045525483033
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323 have recessed grips at their back.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove

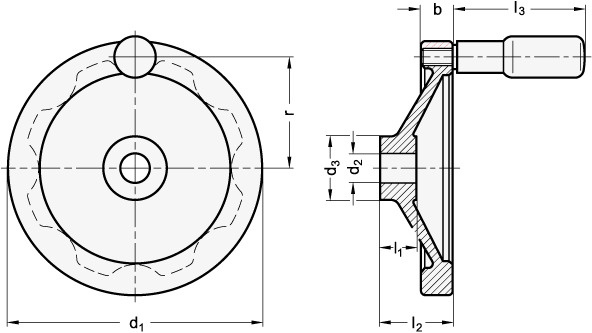

Borehole diameter d2
14
Form
R - with swivelling handle
Handwheel diameter d1
160
L1
20
L2
39
Material
AL - Aluminium
R
71
RoHS
Ja
Weight
0.660 kg
Zylindergriff GN 798
24
b
18
d3
36
l2 ≈
39
l3
76.5
l3 ≈
76.5
