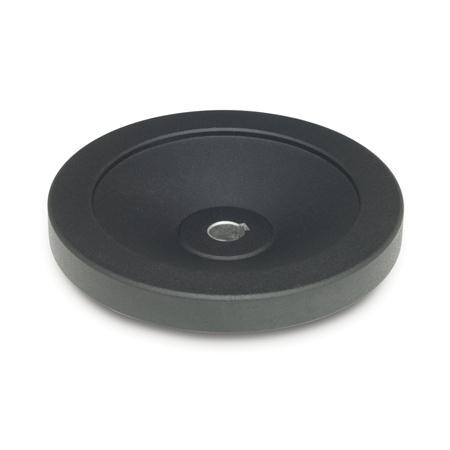

Disc handwheel with bore
GN 323-250-K22-A with groove, black, without handleAL - Aluminium
Item-no.: 1196717Supplier number: 323-250-K22-Acustoms tariff number: 84879090EAN: 4045525185340
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 323 have recessed grips at their back.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
22
Form
A - without handle
Handwheel diameter d1
250
L1
28
L2
51
Material
AL - Aluminium
R
113
RoHS
Ja
Weight
1.515 kg
Zylindergriff GN 798
25
b
23
d3
48
l2 ≈
51
l3
86.5
l3 ≈
86.5
