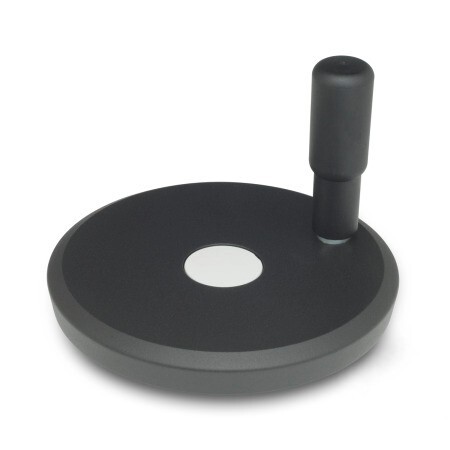

Disc handwheel with handle
GN 923-100-K10-R-SW black textured coatingAD - Aluminium-Druckguss
Item-no.: 1215313Supplier number: 923-100-K10-R-SWcustoms tariff number: 84879090EAN: 4045525677340
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 923 are distinguished by modern design. The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
10
Colour
SW - black, RAL 9005, textured matt
Form
R - with swivelling handle
Handwheel diameter d1
100
L1
17
L2
30
Material
AD - Die-cast aluminium
R
36
Recommended disc
184-20
Recommended disc
184-20
RoHS
Ja
Weight
0.180 kg
Zylindergriff GN 798.2
18
b
14
d1
80...200
d3
28
d4
22
h
9.5
l2 ≈
30
l3
58
l3 ≈
58
