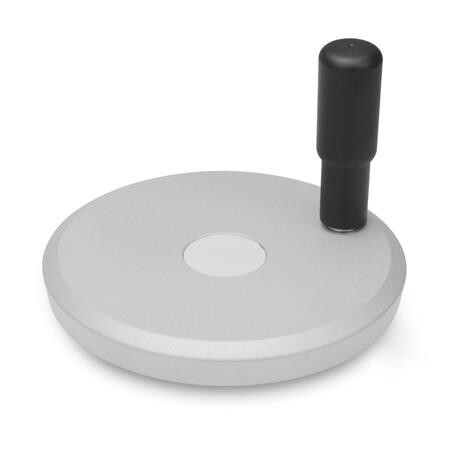

Disc handwheel with handle
GN 923-125-K14-R-SR silver textured coatingAD - Aluminium-Druckguss
Item-no.: 1215332Supplier number: 923-125-K14-R-SRcustoms tariff number: 84879090EAN: 4045525677395
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Disk handwheels GN 923 are distinguished by modern design. The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
Attributes

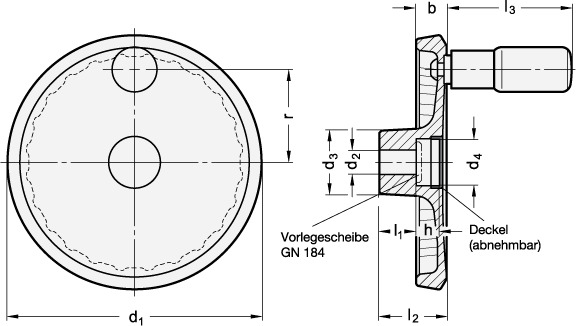

Bore identification
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
14
Colour
SR - silver, RAL 9006, textured matt
Form
R - with swivelling handle
Handwheel diameter d1
125
L1
18
L2
33
Material
AD - Die-cast aluminium
R
45.5
Recommended disc
184-20
Recommended disc
184-20
RoHS
Ja
Weight
0.340 kg
Zylindergriff GN 798.2
22
b
15
d1
80...200
d3
31
d4
22
h
11
l2 ≈
33
l3
61
l3 ≈
61
