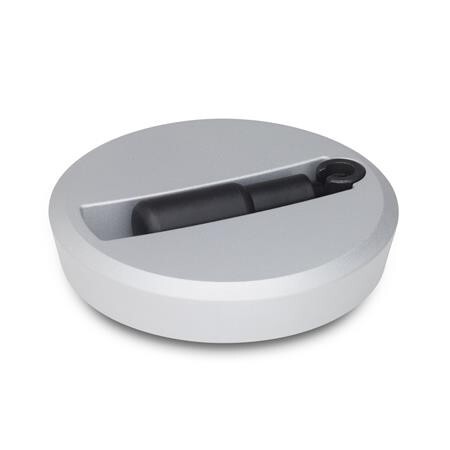

Disc handwheel with reversible handle
GN 923.3-100-B10-R-SR silver matt coatedAD - Aluminium-Druckguss
Item-no.: 1215229Supplier number: 923.3-100-B10-R-SRcustoms tariff number: 84879090EAN: 4045525659681
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The handle in these handwheels is locked in a conical bore in the operating position. For reversal, it must first be pulled from the cone in axial direction. A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
Attributes
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
10
Colour
SR - silver, RAL 9006, textured matt
Form
R - with swivelling reversible handle
Handwheel diameter d1
100
L1
17
L2
39
Material
AD - Die-cast aluminium
R
35
Recommended disc
184-16
Recommended disc
184-16
RoHS
Ja
Umleggriff
18
Weight
0.251 kg
b
20
d3
18
d4
28
h
4
l2 ≈
39
l3
56.5
l3 ≈
56.5
