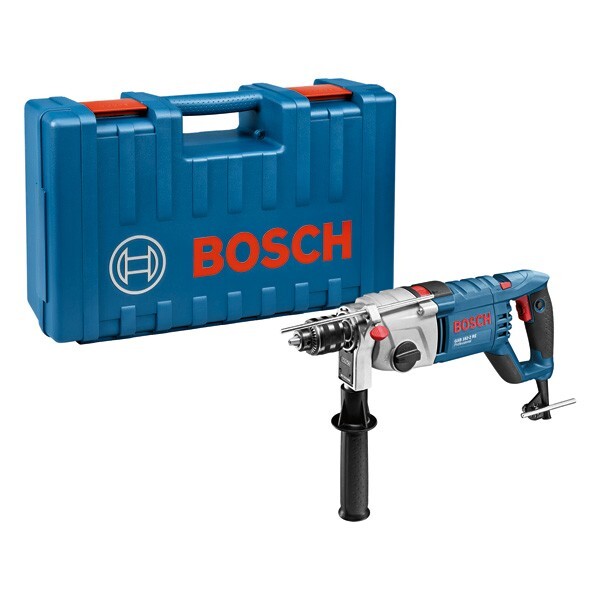

Impact drill GSB 162-2 RE
with a handyman's case Bosch 0.601.18B.000Item-no.: 1269806Supplier number: 060118B000customs tariff number: 84672199EAN: 3165140472050
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Impact Drill GSB 162-2 RE, The GSB 162-2 RE Professional is a high-powered 2-gear corded impact drill designed for the toughest applications including diamond dry-drilling. Its extremely strong 1,500 W motor with a high overload capacity and high torque is ideal for intense and heavy-duty applications. Its speed is specifically optimised to enable a fast drilling progress up to 162 mm in diameter even when using diamond core cutters in the non-impact function. The impact drill’s rotation control clutch ensures an increased level of user protection even when working in the toughest materials. This tool is intended for drilling in masonry, stone, wood, and metal. The GSB 162-2 RE Professional also includes features such as restart protection and speed selection. Carrying case, Auxiliary handle (2 608 025 205), Depth stop (spare part number 2 600 460 045), Keyed chuck 16 mm (1 608 571 057)
Attributes
Drill chuck clamping range, min./max.
3 – 16 mm
Drill spindle connnection thread
5/8"-16 UNF
Drill-Ø masonry
162 / 82 mm
Drill-Ø steel
20 / 14 mm
Drill-Ø wood
50 / 32 mm
Idle speed, 1st gear
0 – 750 min-1
Idle speed, 1st gear, from
0 U/min
Idle speed, 1st gear, to
750 U/min
Idle speed, 2nd gear
1800 min-1
Idle speed, 2nd gear, from
1800 min-1
Impact rate at idling speed
0 - 12750 / 30600 bpm
Impact rate at idling speed, 1st gear, from
0 bpm
Impact rate at idling speed, 1st gear, to
12750 bpm
Impact rate at idling speed, 2nd gear
30600 bpm
Measurement uncertainty k (drilling in metal)
1.5 m/s²
Measurement uncertainty k (impact drilling in concrete)
3.0 m/s²
Measurement uncertainty k (screwing)
0.0 m/s²
Measurement uncertainty k [thread cutting]
0.0 m/s²
Nominal input power
1500 W
Nominal torque
17.0 / 5.0 Nm
Nominal torque, 1st gear
17.0 Nm
Nominal torque, 2nd gear
5.0 Nm
Output power
840 W
Packaging dimensions (width x length x height)
332 x 547 x 152 mm
Rated speed
555 / 1300 min-1
Rated speed, 1st gear
555 min-1
Rated speed, 2nd gear
1300 min-1
Tool dimensions (length)
464 mm
Tool holder
5/8"-16 UNF
Vibration emission value ah [Drilling in metal]
6.0 m/s²
Vibration emission value ah [Screws]
1.5 m/s²
Vibration emission value ah [Thread cutting]
1.5 m/s²
Vibration emission value ah [impact drilling in concrete]
23.0 m/s²
Voltage, electrical
230 V
Voltage, electrical, up to
230 V
Weight
4.8 kg
