Impact drill
GSB 24-2 Bosch 0.601.19C.802Item-no.: 1572009Supplier number: 060119C802EAN: 3165140944526
Quantity:
1 PiecePackable
Price and stock visible after login
Description

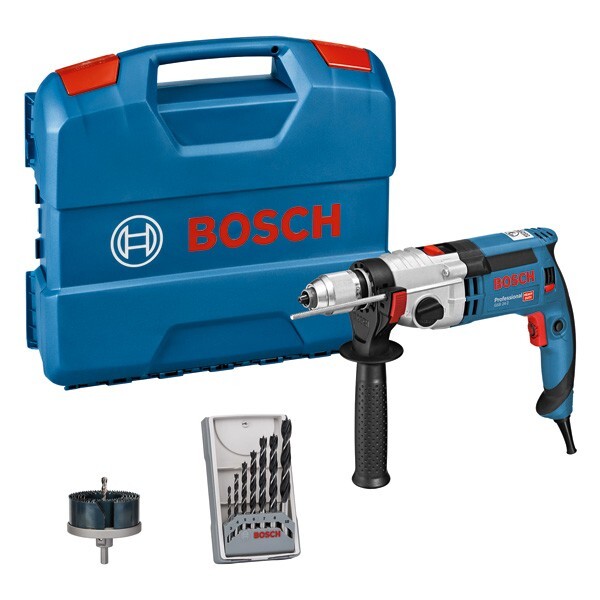

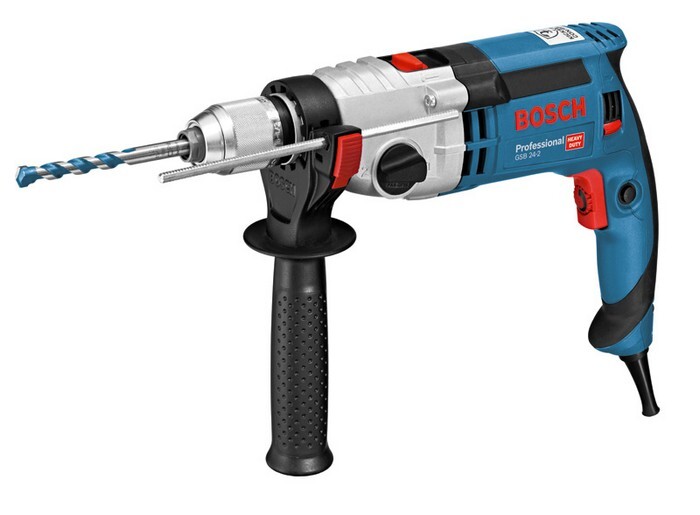

Impact Drill GSB 24-2, The GSB 24-2 Professional is a 2-gear corded impact drill with KickBack Control designed for the toughest jobs. Its strong 1,100 W high-performance motor and high torque make it ideal for most heavy duty applications. It also features KickBack Control for increased user protection. Equipped with a sturdy metal gear housing, this impact drill is extremely robust for a long tool lifetime. This tool is intended for drilling in masonry, stone, wood, and metal. It is compatible with the dust attachment GDE 16 Cyl Professional. The GSB 24-2 Professional includes features such as Autolock, rotation control clutch, and speed selection. Keyless chuck 13 mm (2 608 572 150), Auxiliary handle (2 602 025 193), Depth stop 210 mm (1 613 001 010), L-Case (1 600 A00 M7X), 7-piece wood drill bit set (3/4/5/6/7/8/10 mm) (2 607 017 034), Hole cutter set (2 608 584 063)
Attributes
Drill chuck clamping range, min./max.
1,5 – 13 mm
Drill chuck, design
13 mm quick-action drill chuck
Drill-Ø masonry
24 / 16 mm
Drill-Ø steel
16 / 8 mm
Drill-Ø stone
24 / 16 mm
Drill-Ø wood
40 / 25 mm
Idle speed, 1st gear
0 – 900 min-1
Idle speed, 1st gear, from
0 U/min
Idle speed, 1st gear, to
900 U/min
Idle speed, 2nd gear
3.000 min-1
Idle speed, 2nd gear, from
3.000 min-1
Impact rate at idling speed
0 – 15.300 / 51.000 bpm
Impact rate at idling speed, 1st gear, from
0 bpm
Impact rate at idling speed, 1st gear, to
15.300 bpm
Impact rate at idling speed, 2nd gear
51.000 bpm
Measurement uncertainty k (drilling in metal)
1,5 m/s²
Measurement uncertainty k (impact drilling in concrete)
1,8 m/s²
Measurement uncertainty k (screwing)
1,5 m/s²
Measurement uncertainty k [thread cutting]
1,5 m/s²
Nominal input power
1.100 W
Nominal torque
9,6 / 3,2 Nm
Nominal torque, 1st gear
9,6 Nm
Nominal torque, 2nd gear
3,2 Nm
Output power
630 W
Packaging dimensions (width x length x height)
398 x 441 x 122 mm
Rated speed
580 / 1.900 min-1
Rated speed, 1st gear
580 min-1
Rated speed, 2nd gear
1.900 min-1
Tool dimensions (length)
363 mm
Torque, max.
40,0 Nm
Torque, max. 1st gear
40,0 Nm
Torque, max. 2nd gear
14,5 Nm
Vibration emission value ah [Drilling in metal]
5,6 m/s²
Vibration emission value ah [Screws]
2,5 m/s²
Vibration emission value ah [Thread cutting]
2,5 m/s²
Vibration emission value ah [impact drilling in concrete]
14,6 m/s²
Weight
2,9 kg
