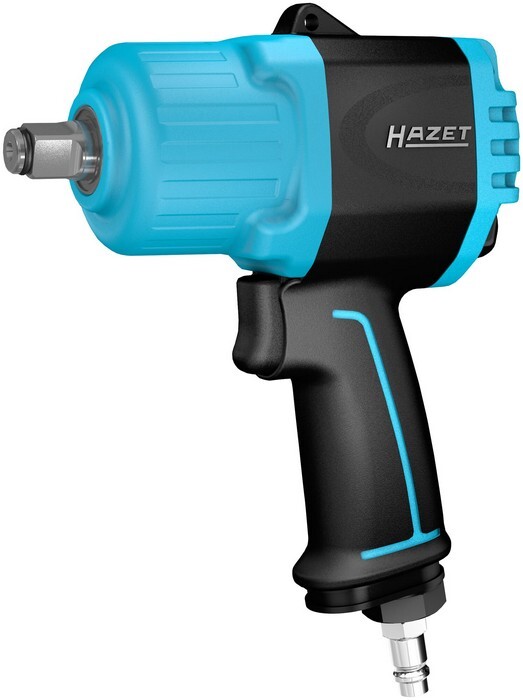

Impact wrench compressed air Twin Turbo

1/2" max: 2200 Nm Hazet 9012TT
Item-no.: 1417170Supplier number: 9012TTEAN: 4000896226924

Quantity: ​​ 1 PiecePackable
Promotional item
Immediately Available

Description
Application: - Long service life and high efficiency in industrial and automotive applications · Loosening torque maximum [Nm]: 2200 Nm · Exhaust air is guided through the handle downwards · Reduced vibrations · Easy handling · Short design – only 128 mm · HAZET Twin Turbo technology – high torques with compact design · 8-blade air motor with 25% higher impact performance ensures maximum torque · One-hand operation for right- and left-handed users · Powerful twin hammer mechanism · Air connection inlet: Inside thread 12.91 mm (1/4″) · Coupler plug: Nominal size 7.2 (included) · Recommended torque: 948 Nm · Hose diameter (recommended): 10 mm · Working pressure (bar): 6.3 · Sound power level: 110.7 db(A) Lp W · Vibration acceleration: 8.69 m/s2 · Loosening torque (max) determined with screw size M: 16 · Forward and reverse: two-stage (forward), single-stage (reverse) · Cold insulated handle · Output: 1/2 inch (12.5 mm) square, solid · Net weight: 1.6 kg · For impact operation · Tightening torque max Nm: 1356 Nm · Loosening torque maximum [Nm]: 2200 Nm · Sound pressure level: 99.7 dB(A) Lp A · Revolutions per minute: 8300 · Air requirement: 147.2 l/min (2.5 l/sec).
Piktogramm
Attributes
Air connection inlet
Internal thread 12.91 mm (1/4″)
Air consumption
147 l/min
Air requirement [l/min]
147.2 l/min
Air requirement [l/sec]
2.5 l/sec
Anschlussgewinde
11,89 mm (1/4") IG
Anzugsmoment maximal [Nm]
1356 Nm
Anzugsmoment maximal [lbf.ft]
1000.13 lbf.ft
Arbeitsdruck
6,3 bar
Clockwise/anticlockwise rotation
two-stage (clockwise rotation), single-stage (anti-clockwise rotation)
Coupling plug
Nominal diameter 7.2 (included)
Drehmoment max.
1356 Nm
Drehzahl max.
8300 min-¹
Handle
Cold insulating handle
Hose diameter (recommended)
10 mm
Impact mechanism (type)
High-performance double hammer impact mechanism
Loosening moment (max) determined with screw size M
16 M
Lösedrehmoment
2200 Nm
Lösemoment maximal [Nm]
2200 Nm
Net weight (g)
1600 g
Net weight (kg)
1.6 kg
Operating pressure (bar)
6.3 bar
Output
1/2 inch (12.5 mm) solid square
Recommended torque
948 Nm
Revolutions/minute (maximum)
8300 upm
Schlauch-Ø
10 mm
Series
auya_9012TT-9014TT
Service package
SP4
Sound power level
110.7 db(A) Lp W
Sound pressure level
99.7 dB(A) Lp A
Weight
1,6 kg
Werkzeugaufnahme
12,5 mm (1/2″) A4-kt.
