Description

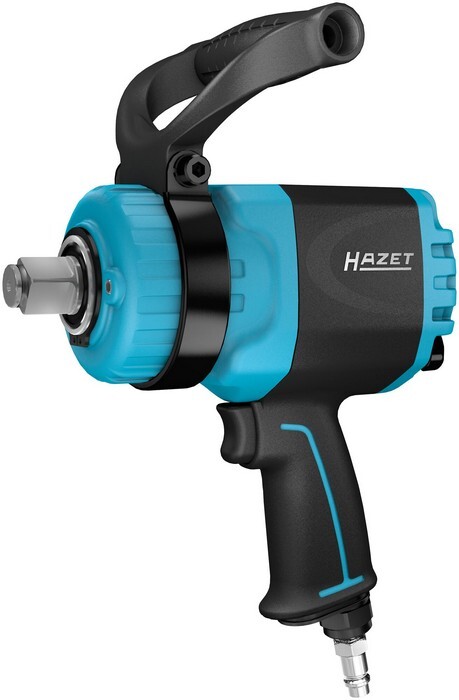

Application: - Long service life and high efficiency in industrial and automotive applications. - Compact design, optimised for work in confined spaces · Loosening torque maximum [Nm]: 4100 Nm · Exhaust air is guided through the handle downwards · Reduced vibrations · Easy handling · Short design – only 184 mm · Strongest HAZET impact wrench ever · Removable handle, 360° adjustable · HAZET Twin Turbo technology – high torques with compact design · 8-blade air motor with 25% higher impact performance ensures maximum torque · One-hand operation for right- and left-handed users · Powerful twin hammer mechanism · Air connection inlet: Inside thread 16.41 mm (3/8″) · Coupler plug: Nominal size 7.2 (included) · Recommended torque: 1890 Nm · Hose diameter (recommended): 13 mm · Working pressure (bar): 6.3 · Sound power level: 110.5 db(A) Lp W · Vibration acceleration: 10.69 m/s2 · Loosening torque (max) determined with screw size M: 32 · Forward and reverse: two-stage (forward), single-stage (reverse) · Cold insulated handle · Output: 3/4 inch (20 mm) square, solid · Net weight: 4.5 kg · For impact operation · Tightening torque max Nm: 2170 Nm · Loosening torque maximum [Nm]: 4100 Nm · Sound pressure level: 99.5 dB(A) Lp A · Revolutions per minute: 5200 · Air requirement: 243.5 l/min (4.1 l/sec).




Attributes
Air connection inlet
Internal thread 16.41 mm (3/8″)
Air consumption
244 l/min
Air requirement [l/min]
243.5 l/min
Air requirement [l/sec]
4.1 l/sec
Anzugsmoment maximal [Nm]
2170 Nm
Anzugsmoment maximal [lbf.ft]
1600.51 lbf.ft
Clockwise/anticlockwise rotation
two-stage (clockwise rotation), single-stage (anti-clockwise rotation)
Coupling plug
Nominal diameter 7.2 (included)
Handle
Cold insulating handle
Hose diameter (recommended)
13 mm
Impact mechanism (type)
High-performance double hammer impact mechanism
Loosening moment (max) determined with screw size M
32 M
Lösemoment maximal [Nm]
4100 Nm
Net weight (g)
4500 g
Net weight (kg)
4.5 kg
Operating pressure (bar)
6.3 bar
Output
3/4 inch (20 mm) square solid
Recommended torque
1890 Nm
Revolutions/minute (maximum)
5200 upm
Series
auya_9012TT-9014TT
Sound power level
110.5 db(A) Lp W
Sound pressure level
99.5 dB(A) Lp A
Weight
4,5 kg
Werkzeugaufnahme
20 mm (3/4″) A4-kt.
