Impact wrench
GDS 30 Bosch 0.601.435.103Item-no.: 1049329Supplier number: 0601435103customs tariff number: 84672985EAN: 3165140041256
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Impact Wrench GDS 30, The GDS 30 Professional is the ultimate powered corded impact wrench for large screwdriving applications. Its impressive 920 W motor and 1,000 Nm of maximum torque enable the powerful driving of screws up to M30 in diameter. It also features an auxiliary handle with a backing pad that can be fitted in two positions for comfortable handling. This impact wrench also has an integrated hanging hook allowing for the attachment to a balancer if needed. This tool is intended for powerful screwdriving applications in concrete and metal, heavy screw joints on trucks, construction machinery, and commercial vehicle constructions, as well as work in petrochemical and other heavy industries. The GDS 30 Professional also features a 1” external square bit holder. Auxiliary handle (2 602 025 075), Hanging loop (spare part number 3 601 310 013)
Attributes
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
0.5 m/s²
Nominal input power
920 W
Packaging dimensions (width x length x height)
310 x 455 x 143 mm
Rated speed
860 min-1
Rated speed, from
860 min-1
Screw size
max. M 30
Screw Ø, max.
max. M 30

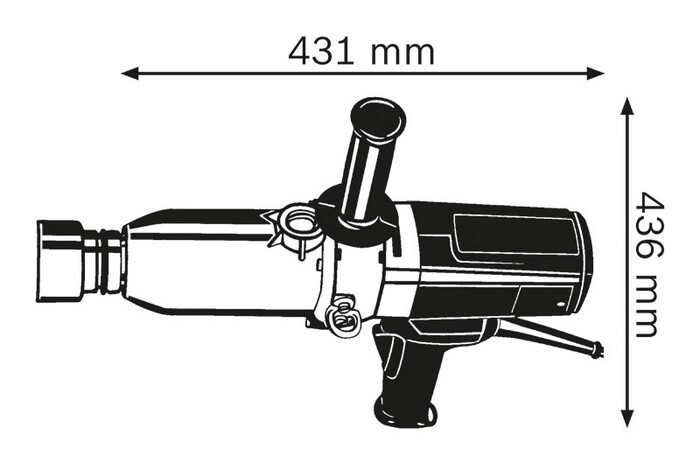

Tool dimensions (length)
431 mm
Tool holder
1'' square
Torque, max. (hard joint)
1000 Nm
Torque, max. (soft joint)
500 Nm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
4.0 m/s²
Voltage, electrical
230 V
Weight
7.3 kg
Werkzeugabmessungen (Höhe)
436 mm
