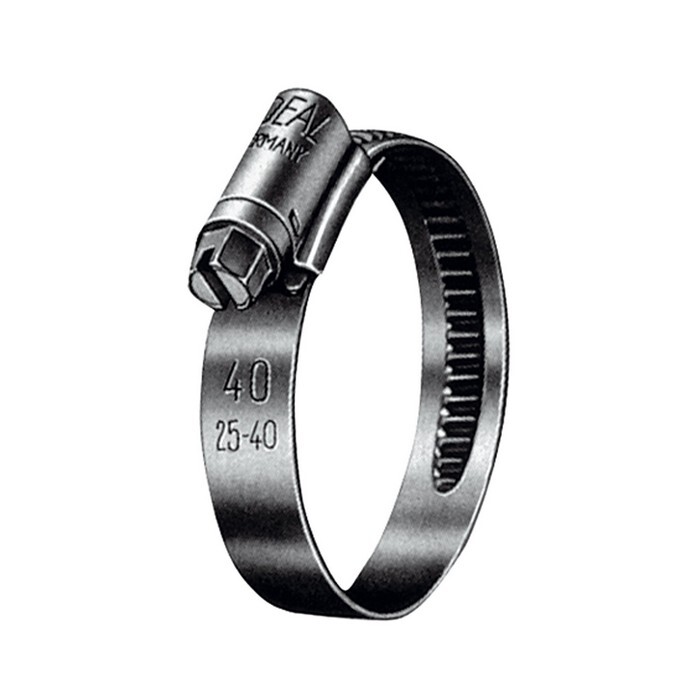

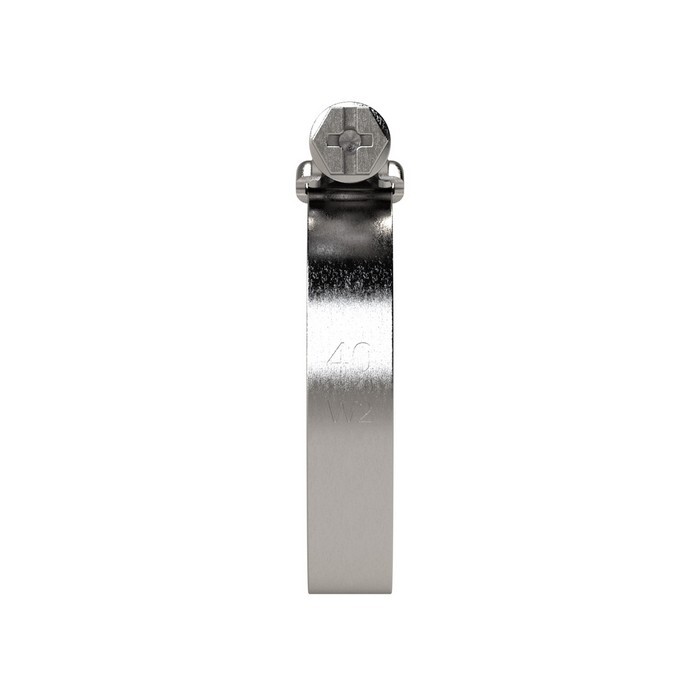

Hose clamp DIN 3017
40-60 mm, hinge 12 mm, W5 1.4571/A4 Worm threadItem-no.: 1121494Supplier number: 158 K-ESEAN: 4047322030151
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
Worm thread hose clamp, Stainless steel 1.4401 (W5), Hexagonal screw AF 7, Clamping range 40.0 - 60.0 mm, Belt width 9.0 mm. Worm drive type. For all standard applications where high clamping forces are normally distributed. Hexagon-head screw a/f 7, with integrated cross-tip, Stainless steel 1.4401 (W 5).
Attributes
Band width
9,0 mm
Material
Stainless steel 1.4401 (W5)
Riegler article number
114232
Voltage range max.
60,0 mm
Voltage range min.
40,0 mm
