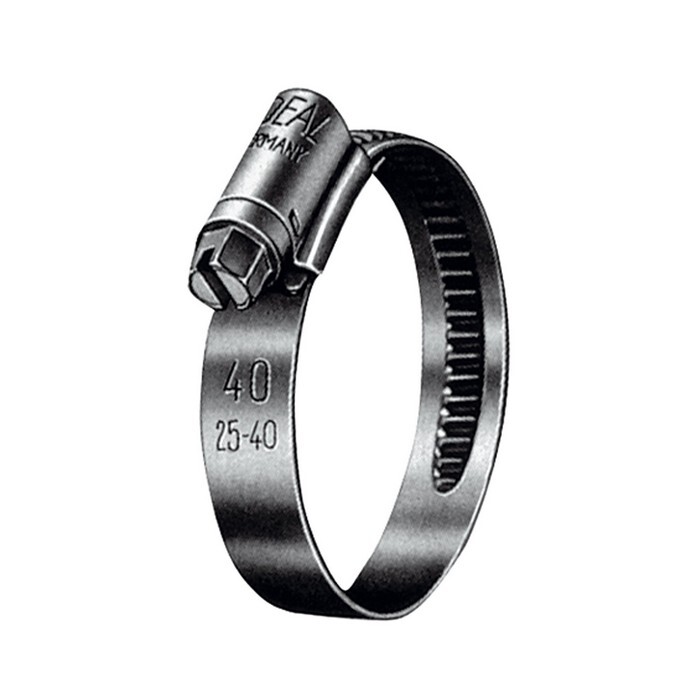

Hose clamp DIN 3017
8-12 mm, hinge 9 mm, W5 1.4571/A4 Worm threadItem-no.: 1121487Supplier number: 158 A-ESEAN: 4047322030014
PU (Packaging): 50 PieceQuantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
Worm thread hose clamp, Stainless steel 1.4401 (W5), Hexagonal screw AF 7, Clamping range 8.0 - 12.0 mm, Belt width 9.0 mm. Worm drive type. For all standard applications where high clamping forces are normally distributed. Hexagon-head screw a/f 7, with integrated cross-tip, Stainless steel 1.4401 (W 5).
Attributes
Band width
9,0 mm
Material
Stainless steel 1.4401 (W5)
Riegler article number
114225
Voltage range max.
12,0 mm
Voltage range min.
8,0 mm
