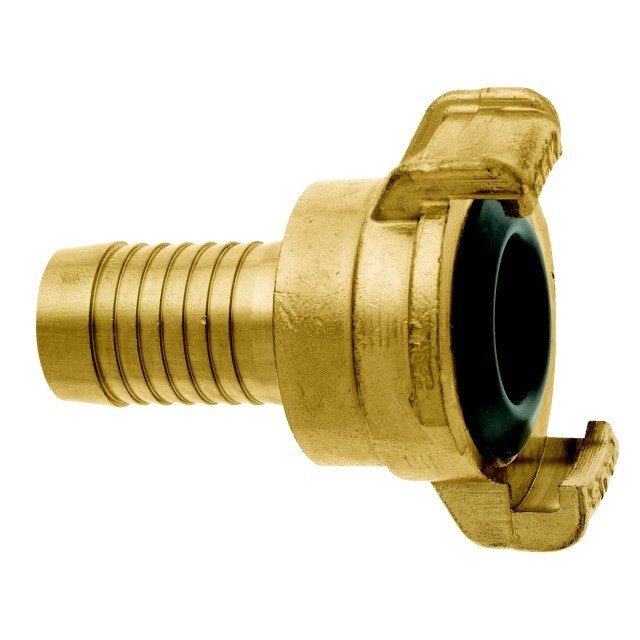

Hose section 2000
3/4" LW 19 mm, 360° rotatable, MS GEKA plus 20103Item-no.: 1465838Supplier number: 20103EAN: 4015933023817
PU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
Schlauchstück 2000 3/4" LW 19 mm, 360° drehbar, MS GEKA plus 20103
Attributes
Claw distance
standardised 40 mm. Combinations are possible. Compatible with all other GEKA® models
Hose ID
19 mm
Hose size
3/4" Inch
L
60 mm
L 1
36 mm
Material
brass
Max. operating pressure
40 bar. Corresponds to over twice the operating pressure compared to conventional claw couplings according to the GEKA® system
Nominal width (NW)
16 mm
Seal
With GEKA® plus high-performance moulded sealing rings form 300 NBR (300C) as standard, patented, temperature range from approx. -10 °C to +90 °C
Temperature application range
approx. -5 °C to +100 °C (depending on the sealing ring quality)
Vacuum resistance
up to 10 m water column (WS)
