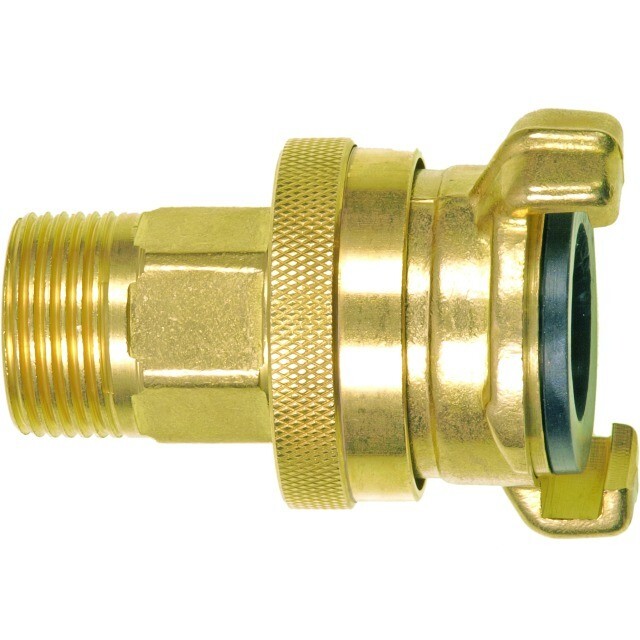

Hose section SD
AG G 1", NBR, MS GEKA plus 08.8213Item-no.: 1465862Supplier number: 80113ASHEAN: 4015933024548
PU (Packaging): 5 PieceQuantity:
5 PiecePackable
Price and stock visible after login
Description
Schlauchstück SD AG G 1", NBR, MS GEKA plus 08.8213
Attributes
Claw distance
standardised 40 mm. Combinations are possible. Compatible with all other GEKA® models
External thread (inch)
G 1" Inch
External thread (mm)
33,25 mm
Hexagon SW
24 mm
Material
Brass hose and threaded pieces
Max. operating pressure
25 bar
Seal
With GEKA® moulded sealing rings "SH" form 220 NBR (80220C) as standard, temperature range from approx. -10 °C to +90 °C
Temperature application range
approx. -5 °C to +100 °C (depending on the sealing ring quality)
