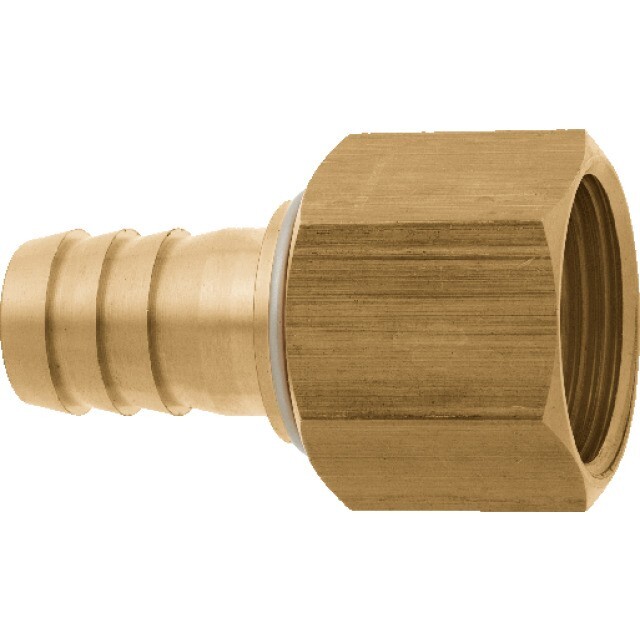

Schlauchverschraubung 2000
IG G 1" LW 25 mm, 360° drehbar, MS GEKA plus 53/4DSKItem-no.: 1465830Supplier number: 53/4DSKcustoms tariff number: 74198090EAN: 4015933023664
PU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
Schlauchverschraubung 2000 IG G 1" LW 25 mm, 360° drehbar, MS GEKA plus 53/4DSK
Attributes
Hose ID
25 mm
Hose size
1" Inch
Internal thread (inch)
G 1" Inch
Internal thread (mm)
30,93 mm
L
76 mm
L 1
40 mm
Material
brass
Max. operating pressure
max. 30 bar
Nennweite
21 mm
Nominal width (NW)
21 mm
SW
36 mm
Seal
With NBR O-rings as standard (temperature range -10 °C to + 90 °C) and V2A snap rings, corrosion-resistant
Temperature application range
approx. -5 °C to +100 °C (depending on the sealing ring quality)
Vacuum resistance
up to 10 m water column (WS)
t1
10 mm
