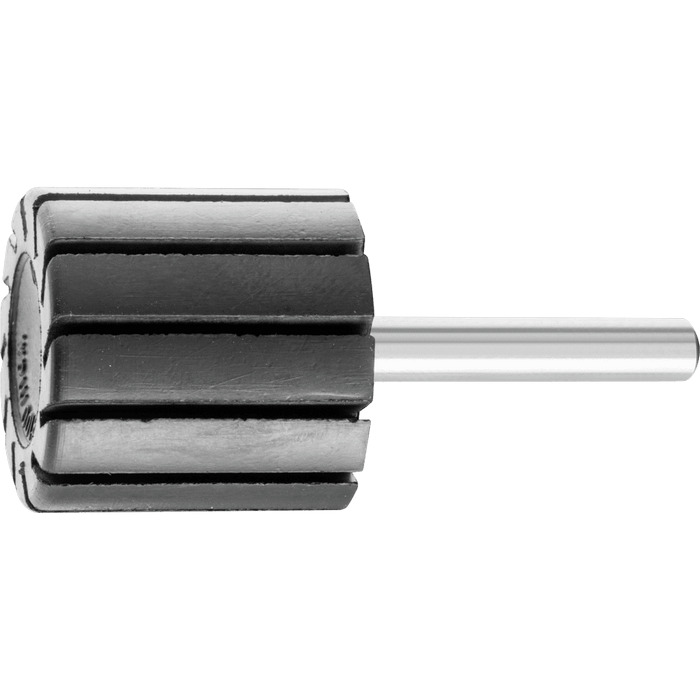

Abrasive sleeve carrier
GK 3030/6 H PferdItem-no.: 1229830Supplier number: 42109080customs tariff number: 84661038EAN: 4007220146897
PU (Packaging): 5 PieceQuantity:
5 PiecePackable
Price and stock visible after login
Description
Compatible holder for cylindrical abrasive spiral bands. In ISO 15637-1, cylindrical rubber drum holders are designated as "holding fixtures of cylindrical abrasive sleeves". Rubber drum holders marked "H" are the harder type and permit grinding at higher contact pressure. They are exceptionally well-suited to work on weld seams.
Attributes
Corresponds to ISO
ISO 15637-1
Form
Cylinder
Hardness
80
Height
30 mm
Length, shaft
35 mm
Max. RPM
19100 RPM
Max. speed
19100 min-¹
PFERD type
GK
RPM, min.
13000 RPM
Series
byly_GK_421
Shaft-Ø
6 mm
Version
Hardness H
Width metric
30 mm
Ø
30 mm
Ø External metric
30 mm
Ø Shaft metric
6 mm
