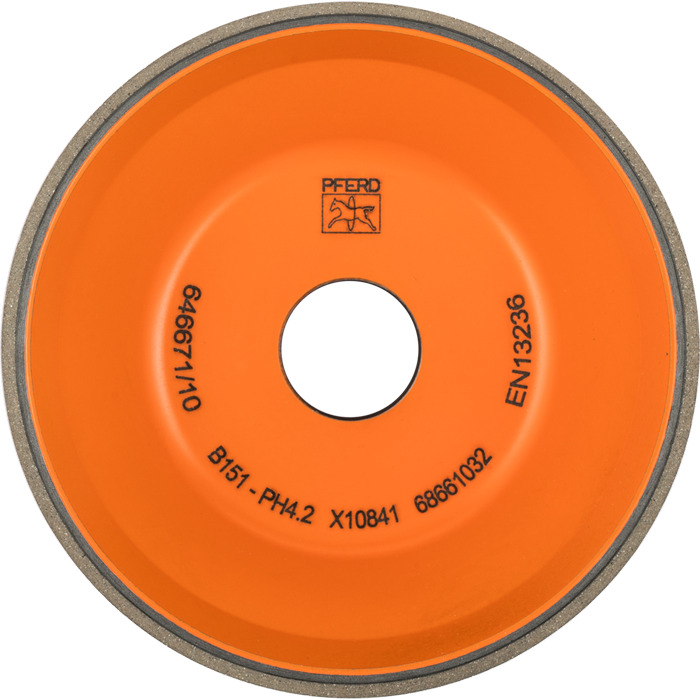

Grinding disc
11V9 100-2-10-20 B151 PH4.2 PferdItem-no.: 1233856Supplier number: 68661032customs tariff number: 68042212EAN: 4007220535646
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Resinoid-bonded CBN grinding discs are often used for grinding tungsten carbide or HSS tools, as well as for other production grinding processes. They are used in both wet and dry grinding. High-performance bond for cool dry grinding at low infeed rates. Only for 11V9 and 12V9 up to diameter 150 mm.
Attributes
Form
11V9
Grit size
B 151
Height, pad
2 mm
Version
PH 4.2
Width, coating
10 mm
Ø Drill
20 mm
Ø External metric
100 mm
