Products
Pferd

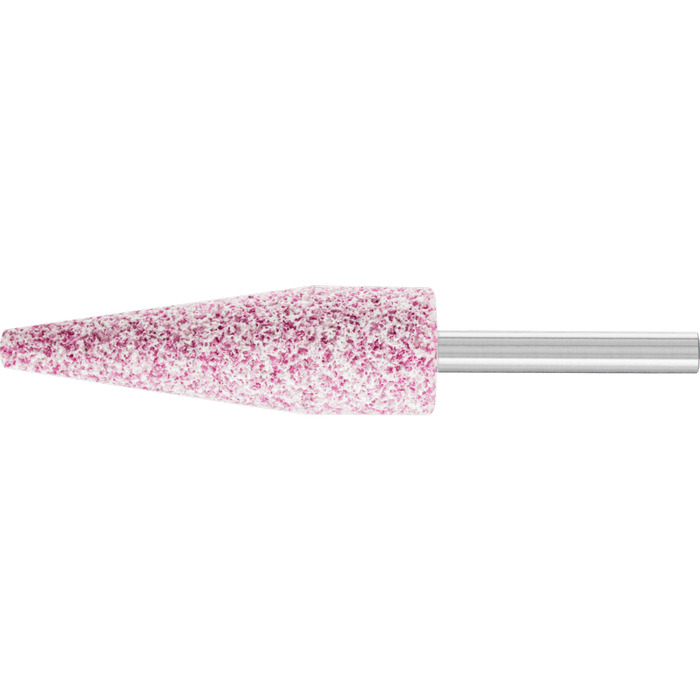

Mounted point hardness M

A 1 6,3 ADW 30 M5V Steel Series A, Horse
Item-no.: 1233500Supplier number: 35001253customs tariff number: 68042230EAN: 4007220114582

PU (Packaging): 10 PieceQuantity: ​​ 10 PiecePackable
Short-term Sourcing

Description
The STEEL type is the most general bond for machining steel and cast steel. It is extremely well suited to grinding high-speed steel (HSS) moulded parts and weld dressing of weld seams on steel constructions. Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing. Shape A 1 is ideal for machining small holes and bores.
Attributes
Form
A 1
Grit size
30
Length, shaft
40 mm
Max. RPM
33500 RPM
RPM, max.
33500 RPM
RPM, opt.
33500 RPM
Series
byly_A_ADW_STEEL
Width metric
64 mm
Ø External metric
19 mm
Ø Shaft metric
6.35 mm
