Description

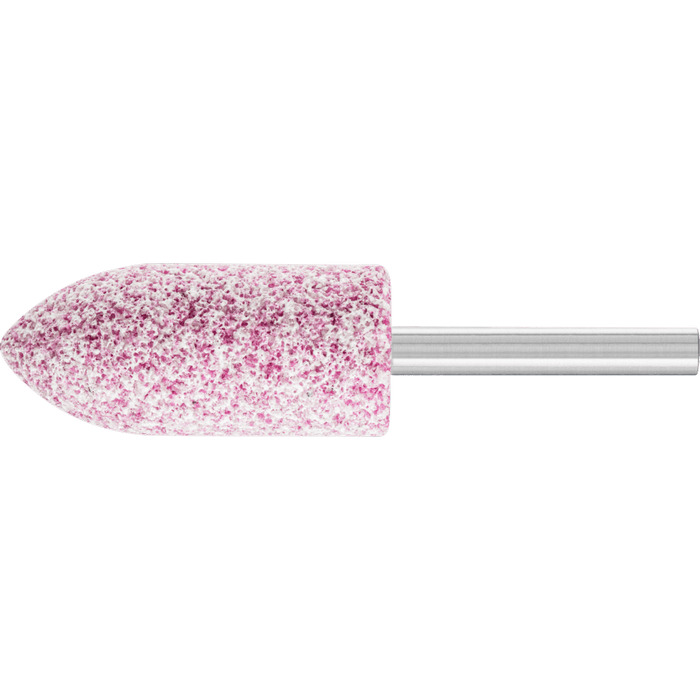

The STEEL type is the most general bond for machining steel and cast steel. It is extremely well suited to grinding high-speed steel (HSS) moulded parts and weld dressing of weld seams on steel constructions. Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing. Shape A 11 is ideal for a variety of deburring and grinding jobs.
Attributes
Form
A 11
Grit size
30
Length, shaft
40 mm
Max. RPM
30400 RPM
RPM, max.
30400 RPM
RPM, opt.
30400 RPM
Series
byly_A_ADW_STEEL
Width metric
50 mm
Ø External metric
22 mm
Ø Shaft metric
6.35 mm
