Mounted point hardness M

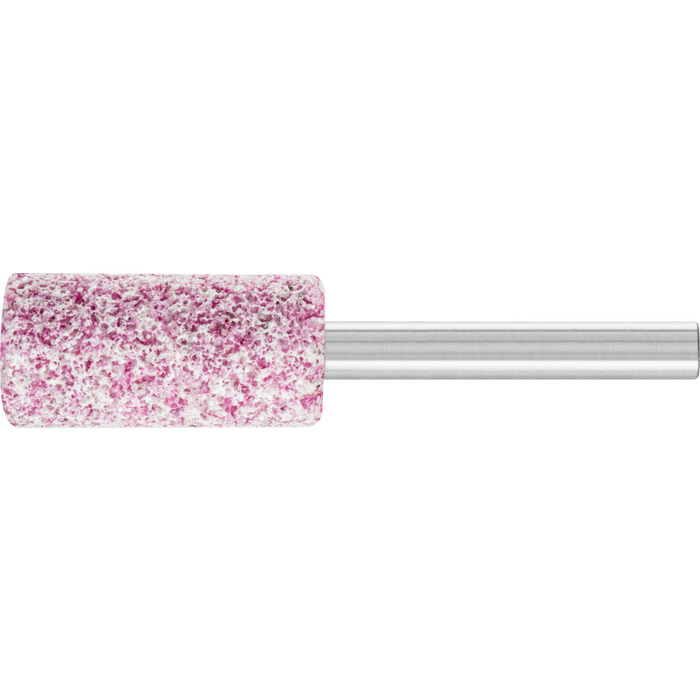

ZY 1632 6 ADW 30 M5V Steel PferdItem-no.: 1027247Supplier number: 31127253EAN: 4007220096598
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 79 variants:
Price and stock visible after login
Description

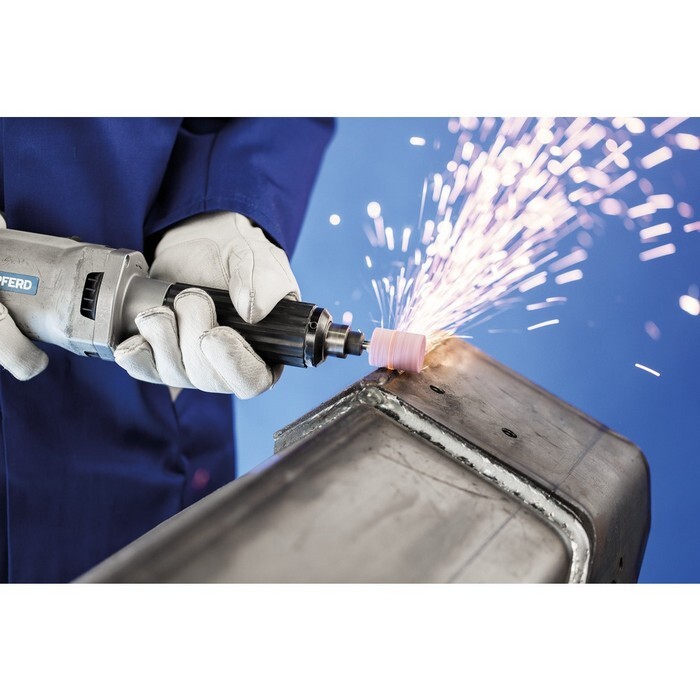

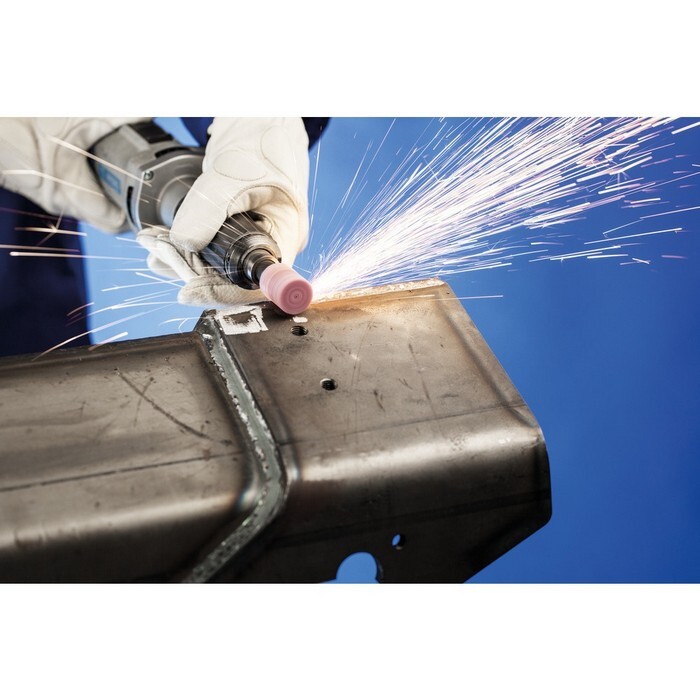

The STEEL type is the most general bond for machining steel and cast steel. It is extremely well suited to grinding high-speed steel (HSS) moulded parts and weld dressing of weld seams on steel constructions. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Binding
ADW
Form
ZY
Grit size
30
Grit size
30
Height
32 mm
Length, shaft
40 mm
Material
Aluminium oxide
Material suitability INOX
Conditionally suitable
Material suitability casting
Very well suited
Material suitability steel
Very well suited
Max. RPM
51200 RPM
Max. speed
51200 min-¹
RPM, opt.
51200 RPM
Series
byly_ZY_ADW_M5V_STEEL_311
Shaft-Ø
6 mm
Width metric
32 mm
Ø
16 mm
Ø External metric
16 mm
Ø Shaft metric
6 mm
