Mounted point hardness O

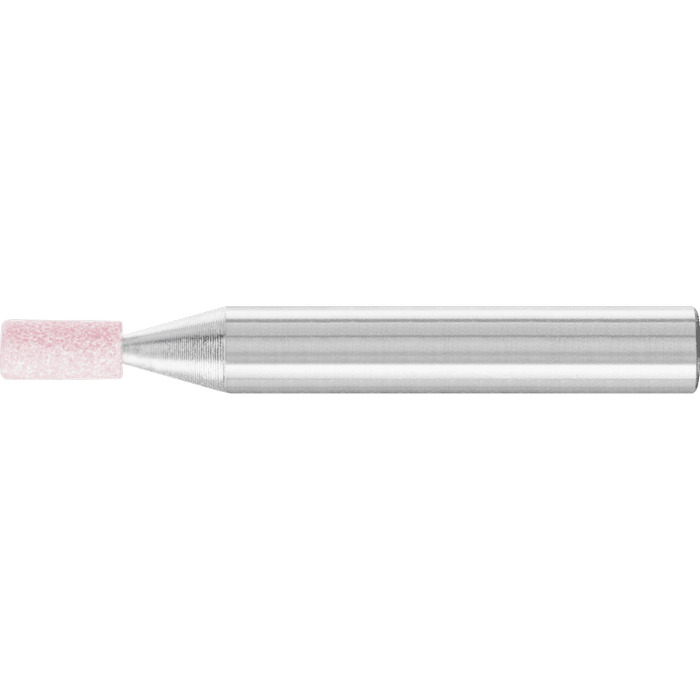

ZY 0408 6 AR 100 O5V Steel EDGE PferdItem-no.: 1229551Supplier number: 31104270customs tariff number: 68042230EAN: 4007220094587
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Grit size
100
Length, shaft
40 mm
Max. RPM
177400 RPM
RPM, max.
177400 RPM
RPM, opt.
150000 RPM
Series
byly_ZY_O5V_31
Width metric
8 mm
Ø External metric
4 mm
Ø Shaft metric
6 mm
