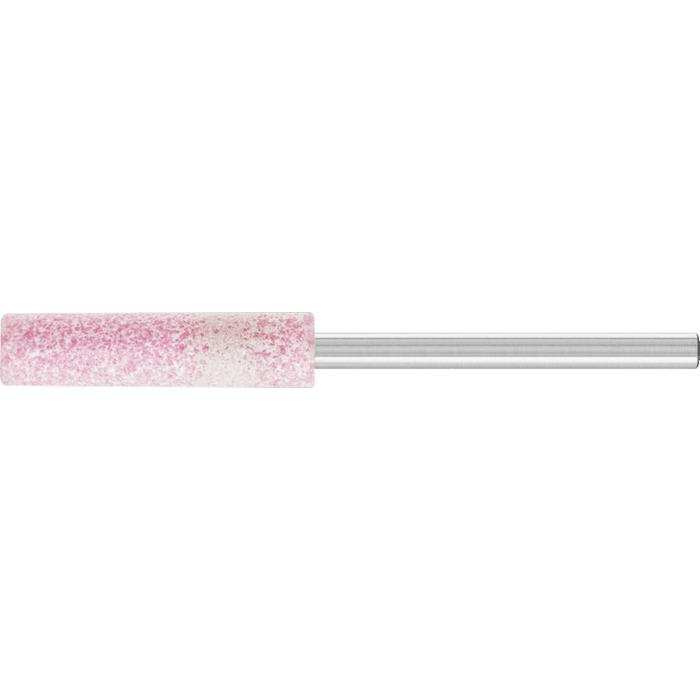

Mounted point hardness O
ZY 0625 3 AR 60 O5V Steel EDGE PferdItem-no.: 1229641Supplier number: 31140276customs tariff number: 68042230EAN: 4007220534656
PU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Grit size
60
Length, shaft
30 mm
Max. RPM
53100 RPM
RPM, max.
53100 RPM
RPM, opt.
53100 RPM
Series
byly_ZY_O5V_31
Width metric
25 mm
Ø External metric
6 mm
Ø Shaft metric
3 mm
