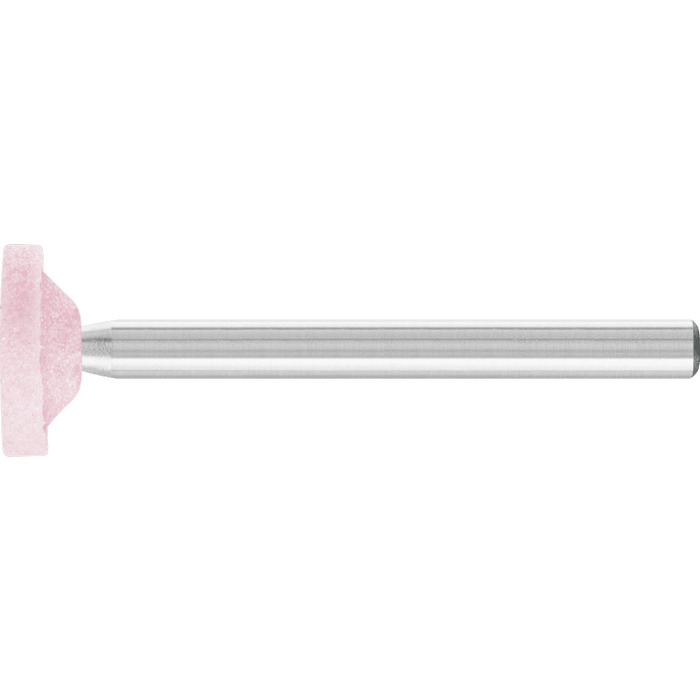

Mounted point hardness O

ZY 1002 3 AR 100 O5V Steel EDGE Pferd

Item-no.: 1229666Supplier number: 31308270customs tariff number: 68042230EAN: 4007220098660

PU (Packaging): 10 PieceQuantity:  10 PiecePackable

Description

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Attributes

Form

W 172

Grit size

100

Length, shaft

30 mm

Max. RPM

95400 RPM

RPM, max.

95400 RPM

RPM, opt.

65000 RPM

Series

byly_ZY_O5V_31

Width metric

2 mm

Ø External metric

10 mm

Ø Shaft metric

3 mm
