Mounted point hardness O

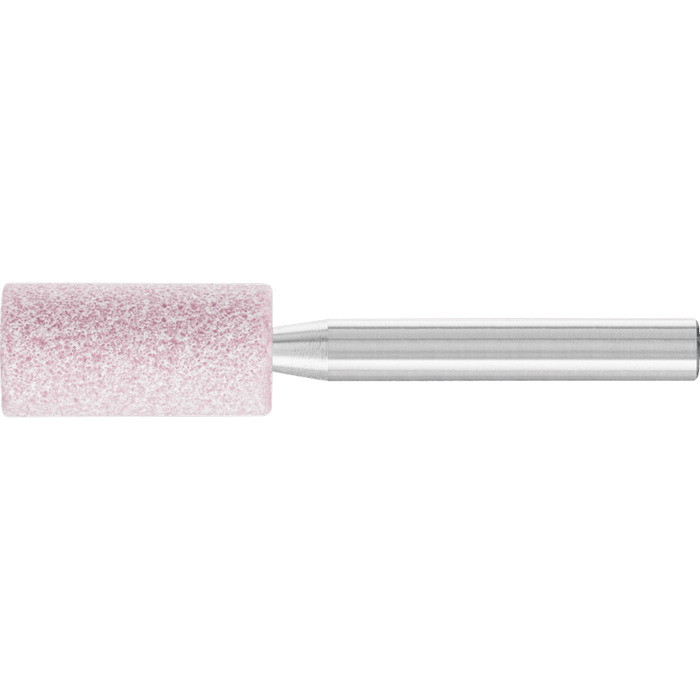

ZY 1325 6 AR 80 O5V Steel EDGE PferdItem-no.: 1136990Supplier number: 31125278customs tariff number: 68042230EAN: 4007220096376
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Binding
AR
Form
ZY
Grit size
80
Grit size
80
Height
25 mm
Length, shaft
40 mm
Material
Aluminium oxide
Material suitability INOX
Conditionally suitable
Material suitability casting
Very well suited
Material suitability steel
Very well suited
Max. RPM
66000 RPM
Max. speed
66000 min-¹
RPM, opt.
50000 RPM
Series
byly_ZY_O5V_31
Shaft-Ø
6 mm
Width metric
25 mm
Ø
13 mm
Ø External metric
13 mm
Ø Shaft metric
6 mm
