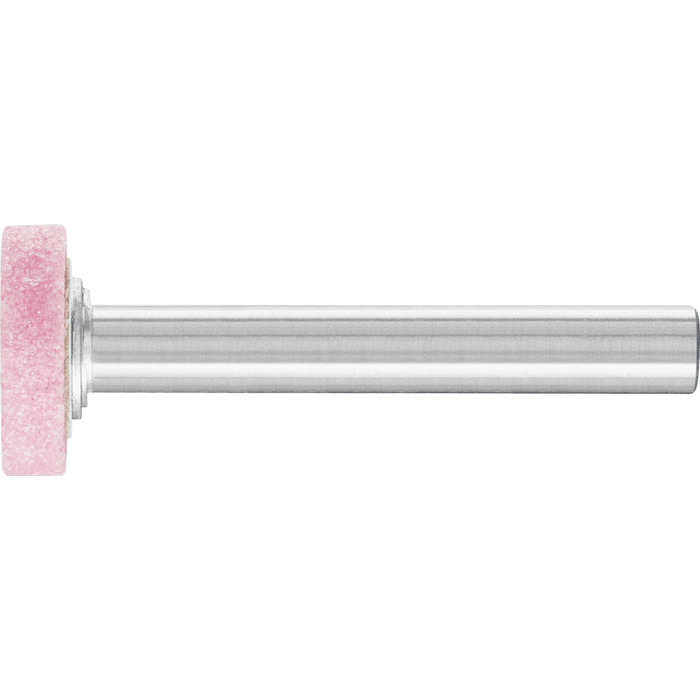

Mounted point hardness O
ZY 1604 6 AR 80 O5V Steel EDGE PferdItem-no.: 1229674Supplier number: 31313278customs tariff number: 68042230EAN: 4007220098936
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Grit size
80
Length, shaft
40 mm
Max. RPM
59600 RPM
RPM, max.
59600 RPM
RPM, opt.
42000 RPM
Series
byly_ZY_O5V_31
Width metric
4 mm
Ø External metric
16 mm
Ø Shaft metric
6 mm
