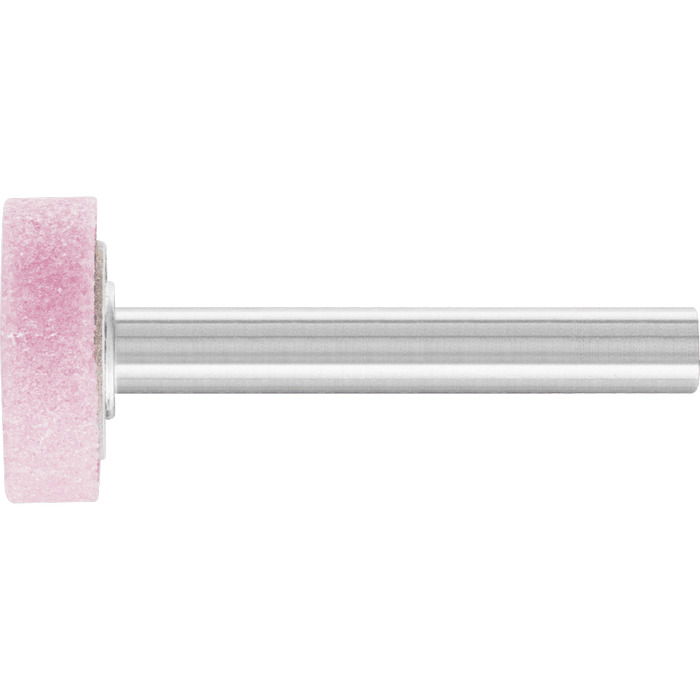

Mounted point hardness O

ZY 2006 6 AR 80 O5V Steel EDGE Pferd

Item-no.: 1229680Supplier number: 31317278customs tariff number: 68042230EAN: 4007220099131

PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:  10 PiecePackable

Description

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Attributes

Form

W 201

Grit size

Length, shaft

40 mm

Max. RPM

47700 RPM

RPM, max.

47700 RPM

RPM, opt.

33000 RPM

Series

byly_ZY_O5V_31

Width metric

6 mm

Ø External metric

20 mm

Ø Shaft metric

6 mm

Downloads

Catalog 3byly_wzh26-katalog-3-web-de-de.pdf
7.59 MB

Catalog 3 - GPSR 1byly_safety_pdf_catalog_3.pdf
253.8 kB
