Mounted point hardness O

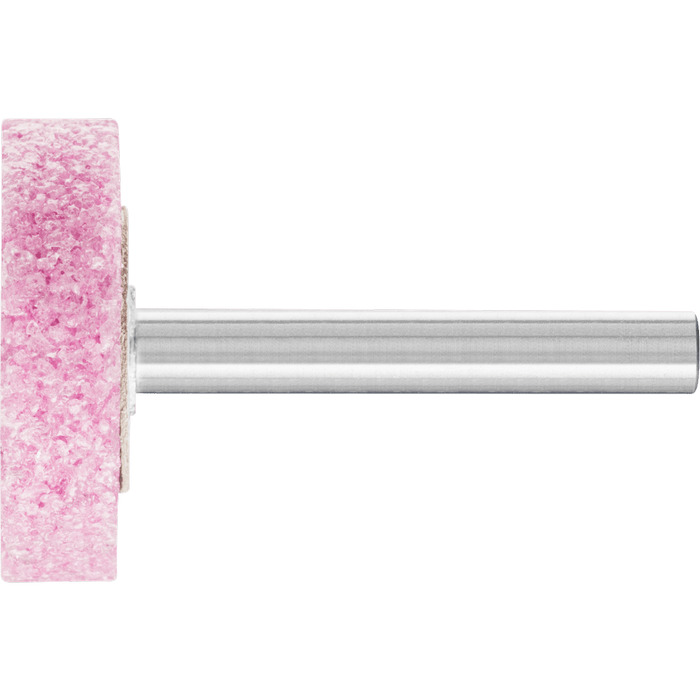

ZY 3208 6 AR 30 O5V Steel EDGE PferdItem-no.: 1229695Supplier number: 31325273customs tariff number: 68042230EAN: 4007220099582
PU (Packaging): 5 PieceQuantity:
5 PiecePackable
Price and stock visible after login
Description
The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape ZY is ideal for grinding bores, radii and contours.
Attributes
Grit size
30
Length, shaft
40 mm
Max. RPM
29800 RPM
RPM, max.
29800 RPM
RPM, opt.
21000 RPM
Width metric
8 mm
Ø External metric
32 mm
Ø Shaft metric
6 mm
